Front Door Upper Moulding — 2016 workshop reference 896

Front Door Upper Moulding — original illustration 1, reference 896Original colors & callouts · Select to enlarge

5. NOTICE: Use care when disengaging the retainer tabs on the upper door moulding to avoid

damage to the moulding.

1. Disengage the tabs on the upper door moulding from the door, along the length of the moulding.

2. Slide the upper door moulding rearward past the door sail panel and remove the moulding.

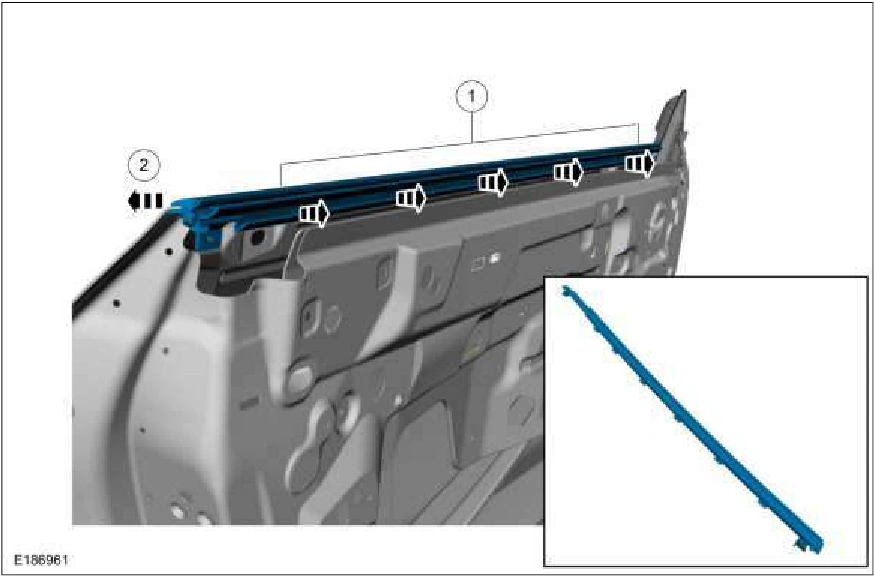

Front Door Upper Moulding — original illustration 2, reference 896Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 896
