501-08 Exterior Trim and Ornamentation 2016 Mustang

Removal and Installation Procedure revision date: 01/30/2015

Front Door Upper Moulding

Removal

NOTE: Removal steps in this procedure may contain installation details.

LH side shown, RH side similar.

Door glass must be in down position.

1. Remove the door sail panel.

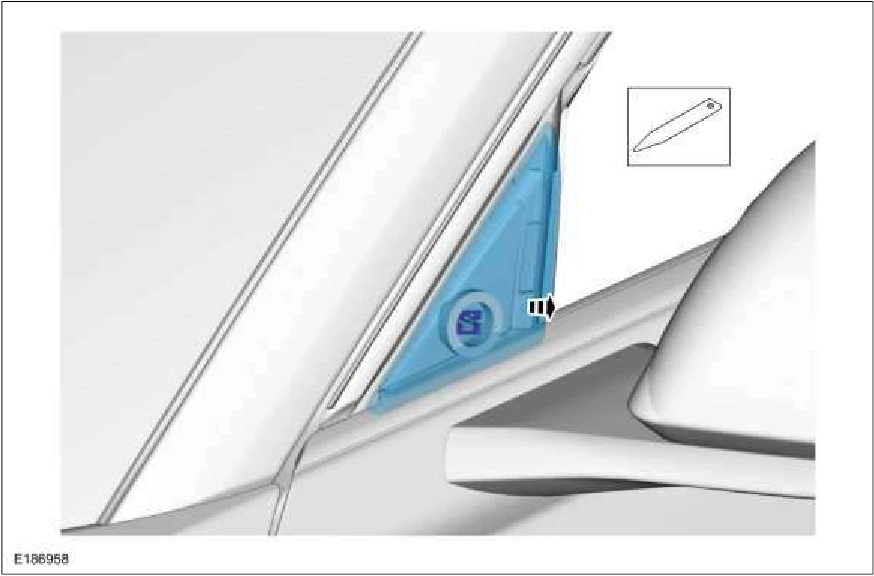

Front Door Upper Moulding — original illustration 1, reference 894Original colors & callouts · Select to enlarge

2. NOTE: Rear weatherstrip shown, front is similar.

Position aside the weatherstrip at the front and rear of door to access the fasteners.
