Rocker Panel Moulding

501-08 Exterior Trim and Ornamentation 2016 Mustang

Removal and Installation Procedure revision date: 01/30/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

1. Remove the 3 pushpin type retainers and partially position aside the splash shield.

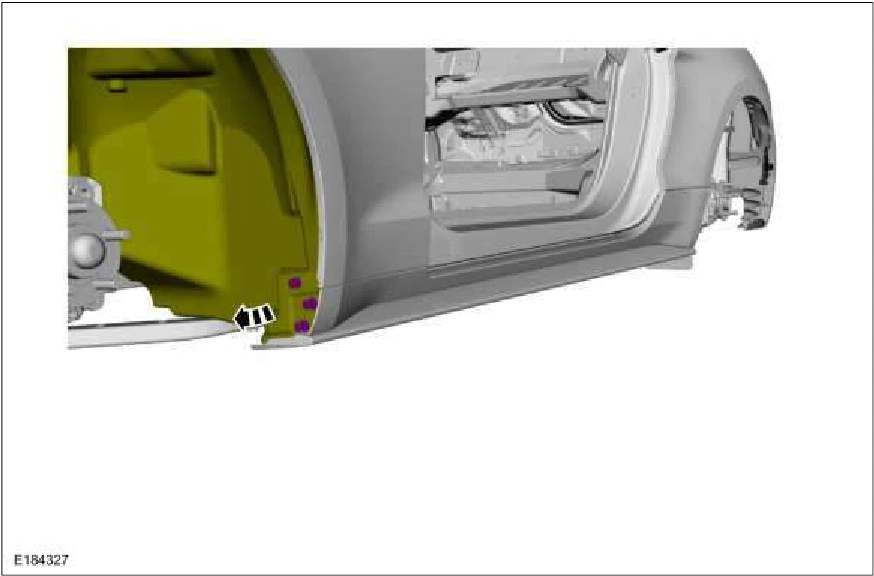

Rocker Panel Moulding — original illustration 1, reference 891Original colors & callouts · Select to enlarge

2. Remove the pushpin type retainers from the underside of the rocker panel moulding.

Source reference 891
