Rear Spoiler — 2016 workshop reference 889

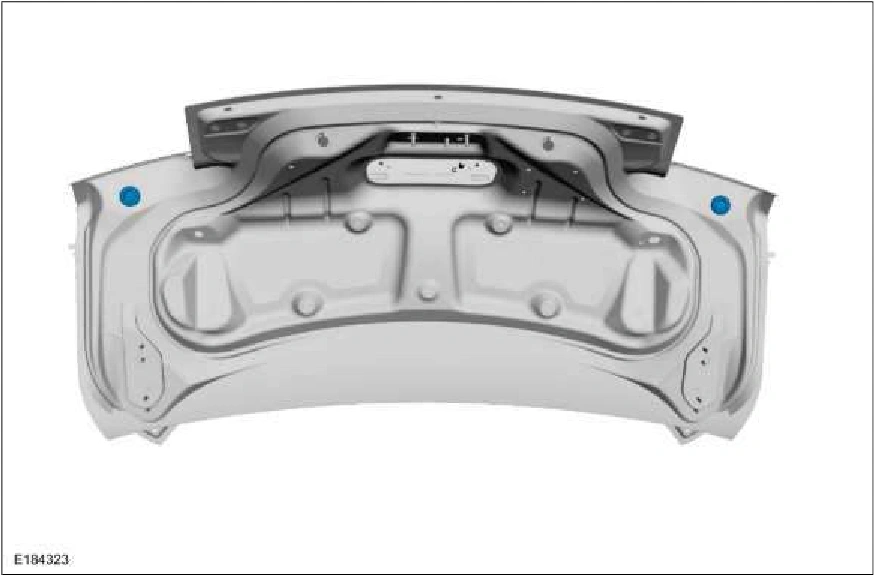

Rear Spoiler — original illustration 1, reference 889Original colors & callouts · Select to enlarge

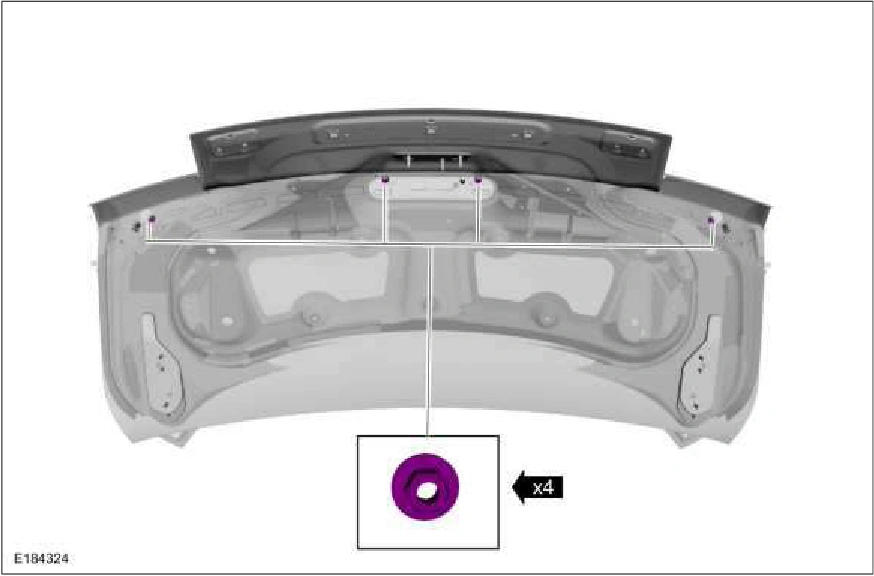

3. Remove the nuts. Torque : 48 lb.in (5.4 Nm)

Rear Spoiler — original illustration 2, reference 889Original colors & callouts · Select to enlarge

4. NOTE: The rear spoiler uses two-side adhesive tape to fasten the spoiler to the luggage compartment lid.

Lift the rear spoiler to detach from the luggage compartment lid.
