Luggage Compartment Lid Moulding — 2016 workshop reference 886

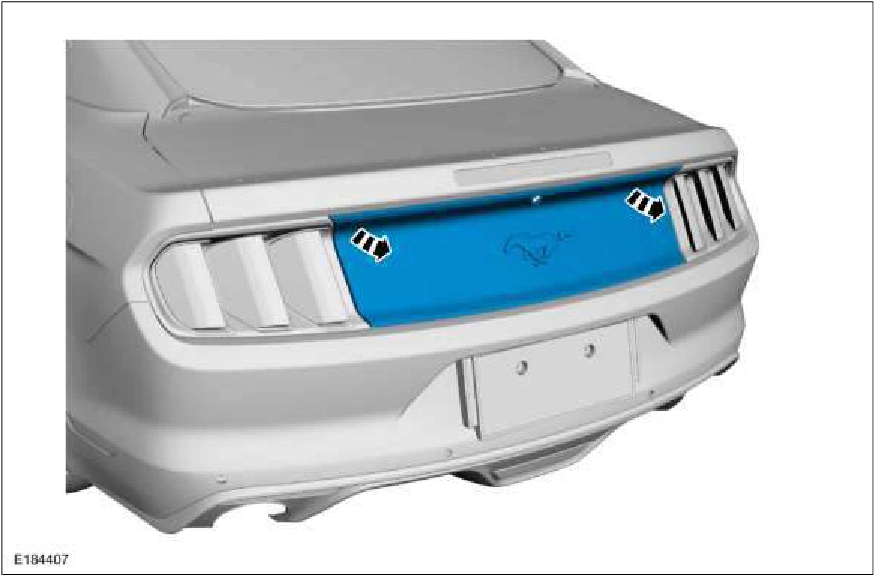

Luggage Compartment Lid Moulding — original illustration 1, reference 886Original colors & callouts · Select to enlarge

7. NOTE: If required, remove the attachment bracket.

Remove the screws. Torque : 28 lb.in (3.2 Nm)

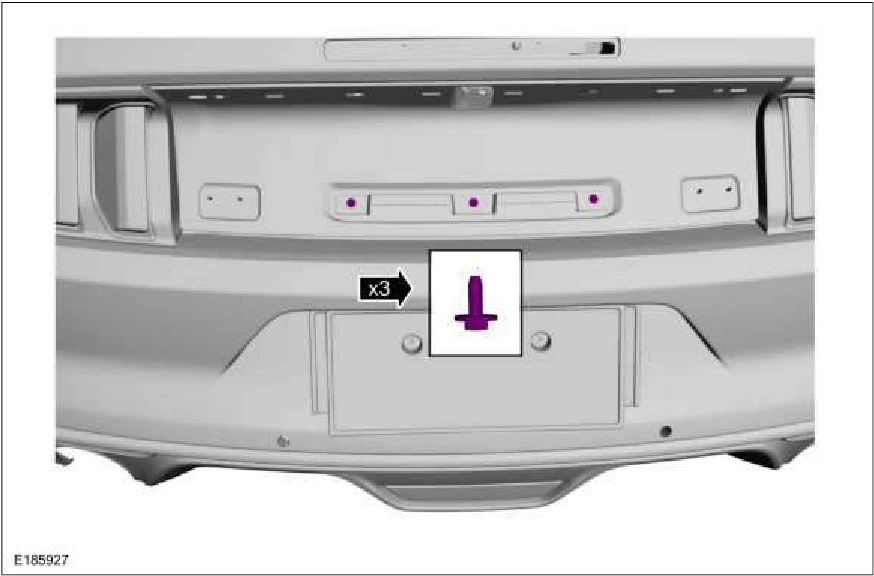

Luggage Compartment Lid Moulding — original illustration 2, reference 886Original colors & callouts · Select to enlarge

8. Remove the luggage compartment lid moulding bracket.

Source reference 886
