Luggage Compartment Lid Moulding — 2016 workshop reference 887

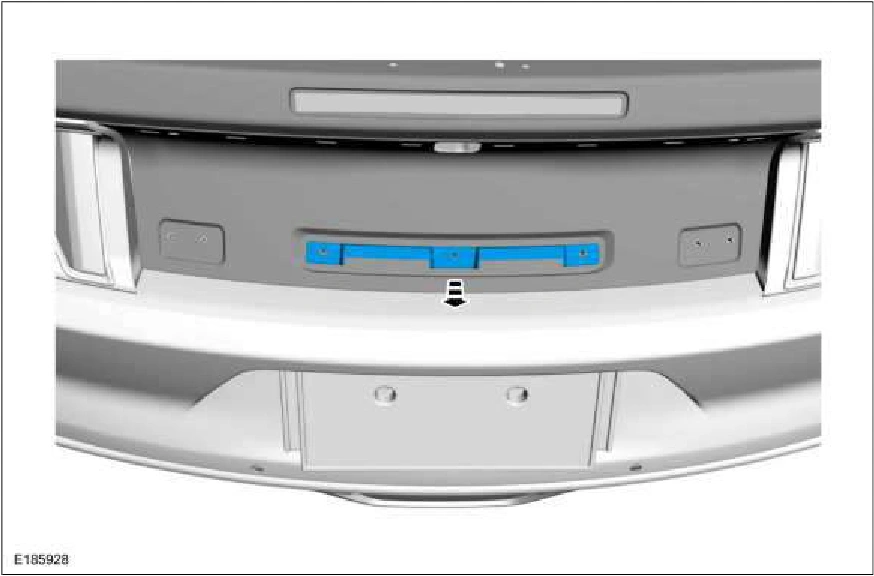

Luggage Compartment Lid Moulding — original illustration 1, reference 887Original colors & callouts · Select to enlarge

Installation

1. NOTE: Ensure the moulding engages luggage compartment lid bracket before the w-clips engage.

To install, reverse the removal procedure.

2. If installing a new moulding, configure the rear video camera following the instructions on the scan tool located using the following path: Electrical> Service Functions>LIN New Module Initialization.
