Rear Spoiler

501-08 Exterior Trim and Ornamentation 2016 Mustang

Removal and Installation Procedure revision date: 01/30/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

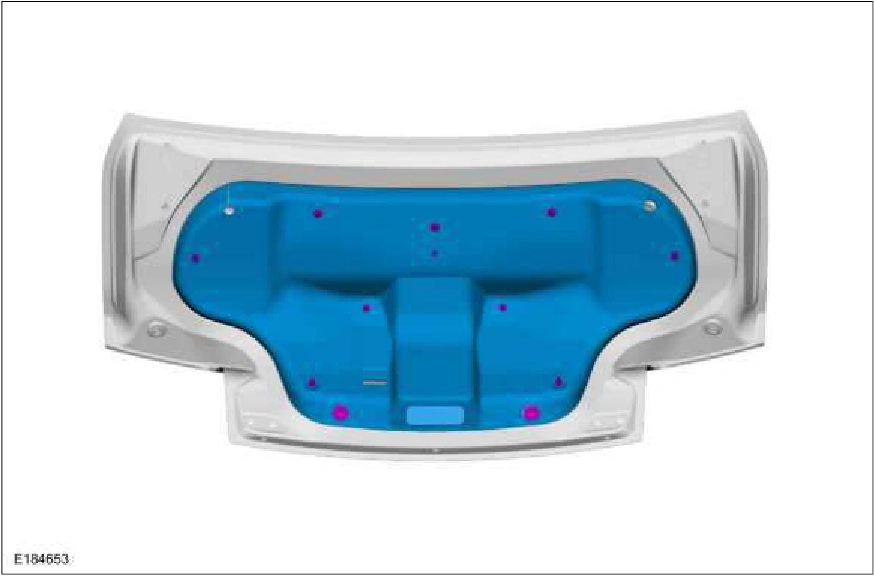

1. Remove the luggage compartment lid trim panel.

Rear Spoiler — original illustration 1, reference 888Original colors & callouts · Select to enlarge

2. Remover the rubber grommets.

Source reference 888
