Luggage Compartment Lid Moulding — 2016 workshop reference 885

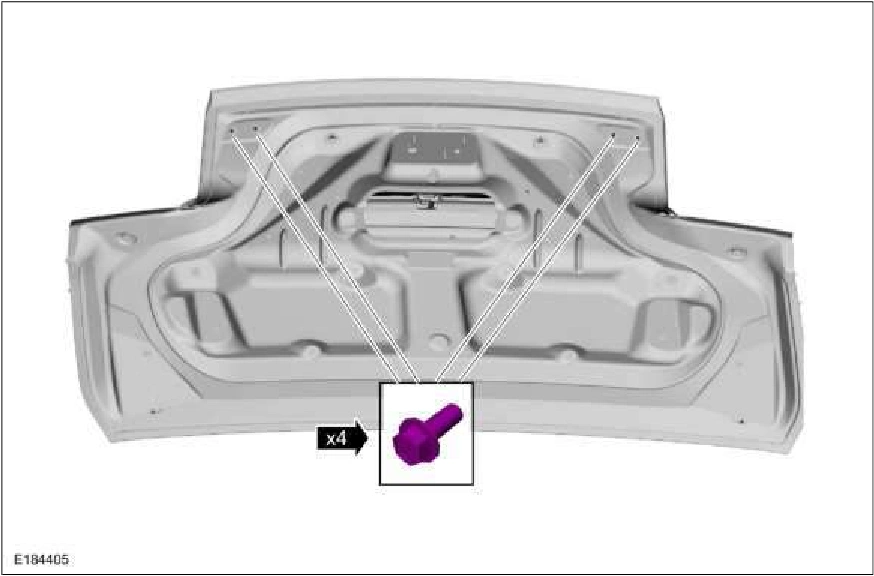

Luggage Compartment Lid Moulding — original illustration 1, reference 885Original colors & callouts · Select to enlarge

5. Disengage the W-clips from the luggage compartment lid moulding using a non-marring trim removal tool. Depress molded clips to disengage.

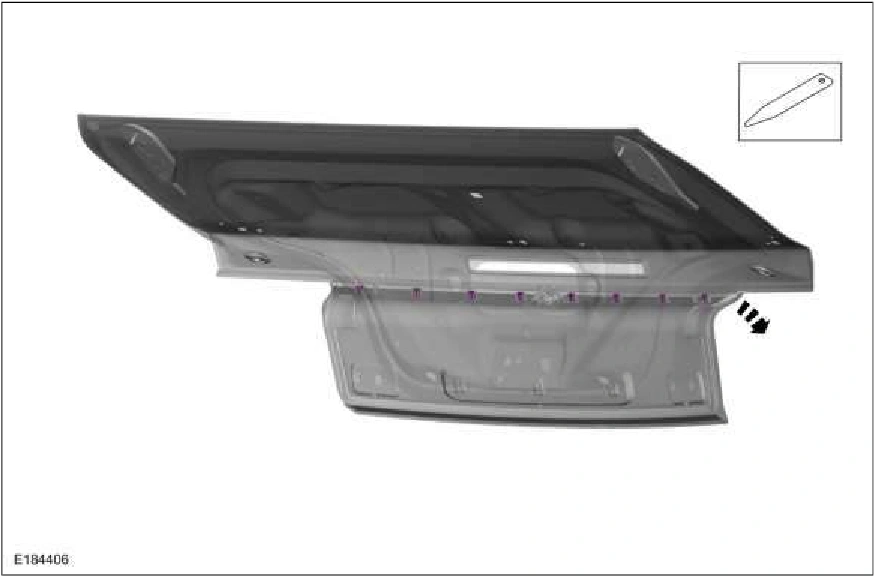

Luggage Compartment Lid Moulding — original illustration 2, reference 885Original colors & callouts · Select to enlarge

6. Remove the luggage compartment lid moulding.

Source reference 885
