Rocker Panel Moulding — 2016 workshop reference 892

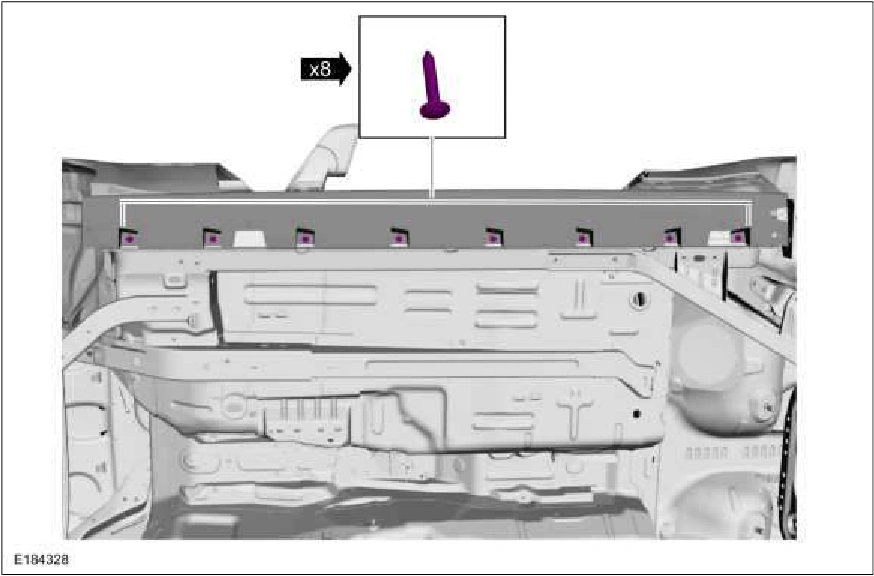

Rocker Panel Moulding — original illustration 1, reference 892Original colors & callouts · Select to enlarge

Step 3

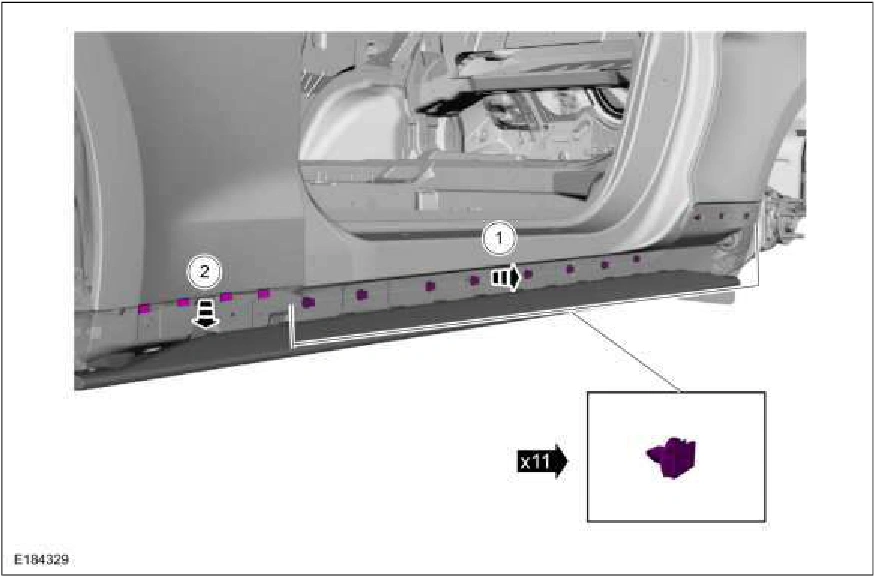

1. Starting at the rear of the rocker panel moulding, detach the retainers from the rocker panel.

2. Disengage the four tab retainers at the fender.

Rocker Panel Moulding — original illustration 2, reference 892Original colors & callouts · Select to enlarge

4. Remove the rocker panel moulding.
