Front Door Upper Moulding — 2016 workshop reference 895

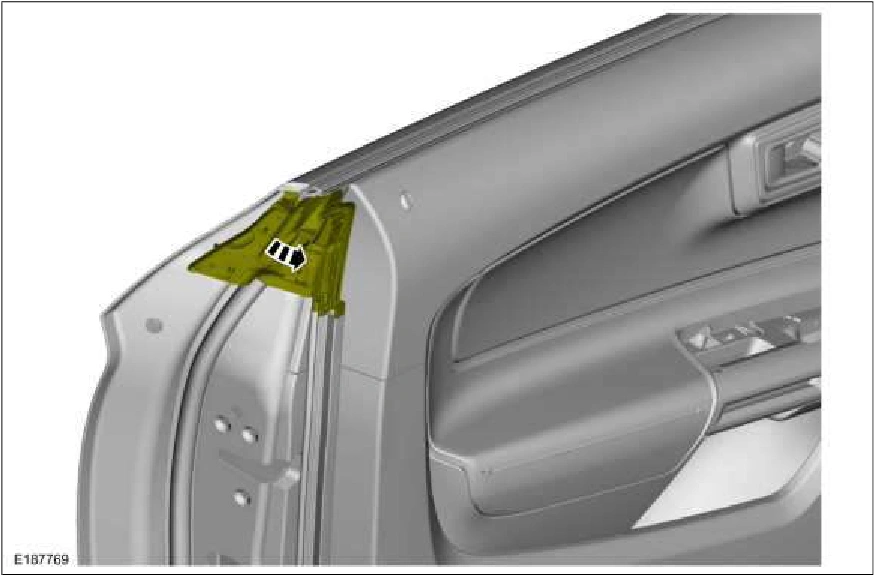

Front Door Upper Moulding — original illustration 1, reference 895Original colors & callouts · Select to enlarge

3. Remove the screw at the rear of the upper door moulding.

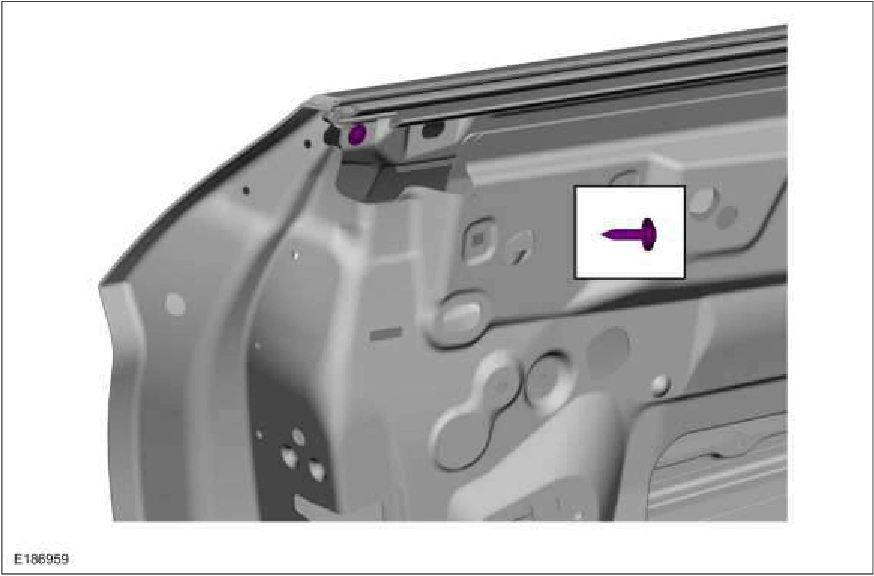

Front Door Upper Moulding — original illustration 2, reference 895Original colors & callouts · Select to enlarge

4. Remove the pin type retainer from the upper door moulding.
