Check for Terminal Part Numbers

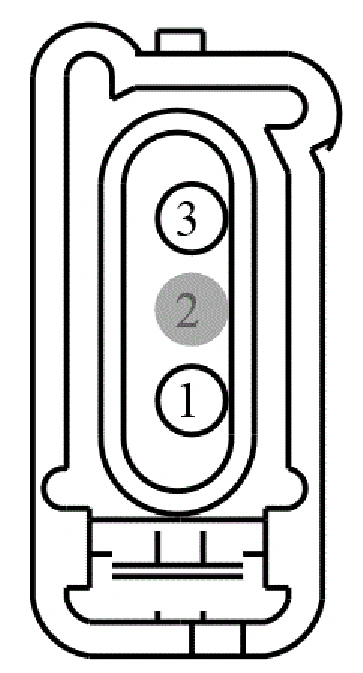

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | GD301 (BK-BU) | 20 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 3RD POINT | |
2 | * | * | Not Used | |
3 | CLS10 (GN-BN) | 20 | CTRL MOD. - REVERSE LEFT OR COMMON |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1167 | Service Part Number: 3U2Z-14S411-FHAB Gauge: |
