Connector End View C499 - Rear Lamp Assembly RH

OEM Connector End Views

Source configuration appliesSource reference 3,968HTML edition

9	*	*	Not Used
10	*	*	Not Used

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1175 BU2Z-14S411-VA

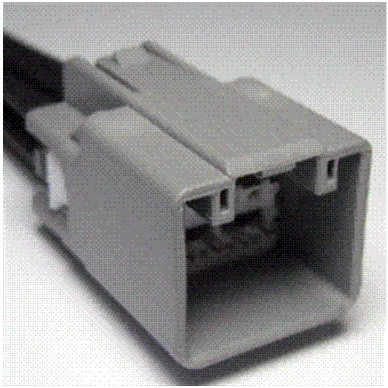

Connector End View C499 - Rear Lamp Assembly RH — original illustration 1, reference 3968Original colors & callouts · Select to enlarge

Gauge:

16

Pin material:

Tin (greased)

Cavities:

10

Vehicle Uses

Lamp - Park/Turn/Stop

CONNECTOR VIEWS > CONNECTOR END VIEW C499 - REAR LAMP ASSEMBLY RH

Connector:C499

Description

REAR LAMP ASSEMBLY RH

Color

LT GY

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below
