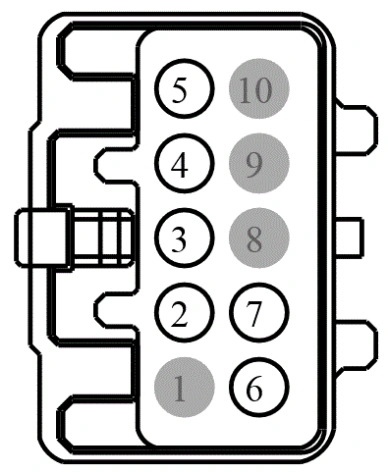

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * | * | Not Used | |
2 | CLS07 (BN-YE) | 22 | CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT | |
3 | CLS53 (GY-VT) 22 | CTRL MOD. - STOP/TURN RIGHT OUTBOARD | ||
4 | CLS52 (BN) | 26 | CTRL MOD. - STOP/TURN RIGHT MIDDLE | |
5 | CLS19 (VT-OG) | 22 | CTRL MOD. - STOP/TURN RIGHT (INBOARD) | |
6 | GD301 (BK-BU) | 20 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 3RD POINT | |
7 | CLS55 (GN) | 26 | LAMP - TURN REAR LEFT # SIGNAL OUT | |
8 | * | * | Not Used |
