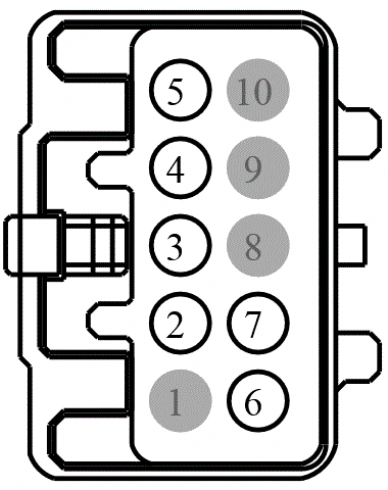

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * | * | Not Used | |
2 | CLS06 (GN-OG) | 22 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT | |
3 | CLS51 (WH-GN) | 22 | CTRL MOD. - STOP/TURN LEFT OUTBOARD | |
4 | CLS50 (BN-VT) | 22 | CTRL MOD. - STOP/TURN LEFT MIDDLE | |
5 | CLS18 (GY-BN) | 22 | CTRL MOD. - STOP/TURN LEFT (INBOARD) | |
6 | GD301 (BK-BU) 20 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 3RD POINT | ||
7 | CLS54 (BU) | 26 | LAMP - TURN REAR RIGHT # SIGNAL OUT | |
8 | * | * | Not Used |
