Connector End View C1029 - Evaporative Emission (Evap) Purge Valve — OEM Connector End Views · Reference 4053

5 VE801 (VT-OG) 18 14B485 5 VE801 (VT-OG) 20 12C508 6 RE323 (WH-BN) 18 14B485 6 RE323 (WH-BN) 20 12C508

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

FU2Z-14S411-TA

Pigtail Kit Part Number

Gauge:

WPT-1426

16

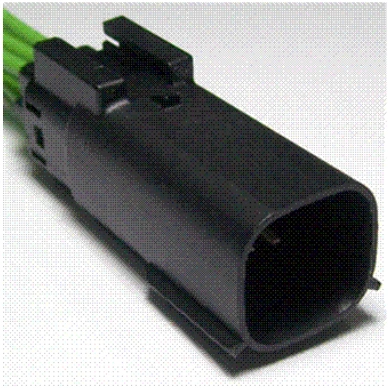

Connector End View C1029 - Evaporative Emission (Evap) Purge Valve — original illustration 1, reference 4053Original colors & callouts · Select to enlarge

Pin material:

Silver

Cavities:

6

Vehicle Uses:

Camera - Reverse Park Aid

Lamp - Park/Turn/Stop

Sensor - Coolant Temperature

Sensor - O2 (HEGO/ EGO)

CONNECTOR VIEWS > CONNECTOR END VIEW C1029 - EVAPORATIVE EMISSION

(EVAP) PURGE VALVE

Connector:C1029

Description

EVAPORATIVE EMISSION (EVAP) PURGE VALVE

Color

Ford_Mustang_all_2015-2017.pdf · source reference 4053

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
