Harness
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|

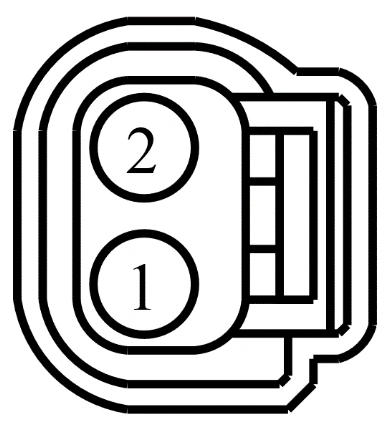

1 | CE113 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (EVAPCP) | |
1 | CE113 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (EVAPCP) | |
2 | CBK02 (GN) | 20 | FUSE - 40 OR CIRCUIT BREAKER (VPWR 2) |
Available Pigtail Kits | |
Pigtail Kit Part Number | Service Part Number: |
Ford_Mustang_all_2015-2017.pdf · source reference 4054
Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
