Connector End View C1035a - Battery Junction Box (Bjb) — OEM Connector End Views · Reference 4055

8U2Z-14S411-EA

WPT-905

Gauge:

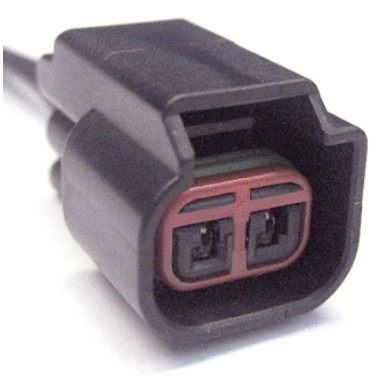

Connector End View C1035a - Battery Junction Box (Bjb) — original illustration 1, reference 4055Original colors & callouts · Select to enlarge

16

Pin material:

Tin

Cavities:

2

Vehicle Uses

Relay - Daytime Running Lamp (DRL)

Switch - Heater / A/C Blower (Front)

CONNECTOR VIEWS > CONNECTOR END VIEW C1035A - BATTERY JUNCTION BOX

(BJB)

Connector:C1035A

Description

BATTERY JUNCTION BOX (BJB)

Color

Harness

14B060

Base Part #

part# N/A

Service Pigtail

Not Available

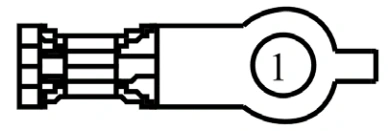

Connector End View C1035a - Battery Junction Box (Bjb) — original illustration 2, reference 4055Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
