CONNECTOR VIEWS > CONNECTOR END VIEW C1035B - BATTERY JUNCTION BOX
(BJB)
Connector:C1035B
Description
BATTERY JUNCTION BOX (BJB)
Color
Harness
14B060
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | SBF01 (RD) | 4 | FUSE - 1 (PREFERRED FOR STARTER) |

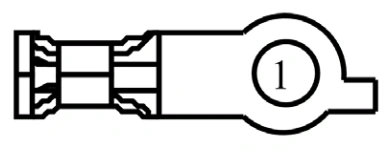

CONNECTOR VIEWS > CONNECTOR END VIEW C1035C - BATTERY JUNCTION BOX
(BJB)
Connector:C1035C
Description
BATTERY JUNCTION BOX (BJB)
Color
Harness
