Connector End View C1041 - Headlamp Assembly RH

OEM Connector End Views

Source configuration appliesSource reference 4,057HTML edition

← Chapter contents Manual collection

14B060

Base Part #

part# N/A

Service Pigtail

Not Available

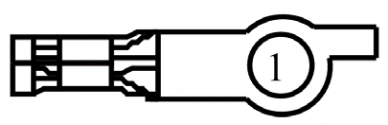

Connector End View C1041 - Headlamp Assembly RH — original illustration 1, reference 4057Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBF02 (RD)	4	FUSE - 2
1	SBF02 (YE-RD)	4	FUSE - 2

CONNECTOR VIEWS > CONNECTOR END VIEW C1041 - HEADLAMP ASSEMBLY RH

Connector:C1041

Description

HEADLAMP ASSEMBLY RH

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below
