Connector End View C1064 - Engine Coolant Temperature (Ect) Sensor

OEM Connector End Views

Source configuration appliesSource reference 4,074HTML edition
← Chapter contentsManual collection

34

GD123 (BK-GY)

18

CONNECTOR VIEWS > CONNECTOR END VIEW C1064 - ENGINE COOLANT

TEMPERATURE (ECT) SENSOR

Connector:C1064

Description

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Color

GY

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

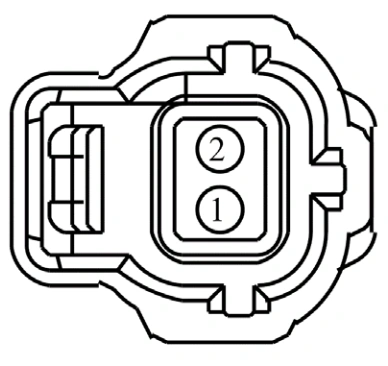

Connector End View C1064 - Engine Coolant Temperature (Ect) Sensor — original illustration 1, reference 4074Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VE716 (YE)

20

SENSOR - ENGINE COOLANT TEMPERATURE (ECT)

Ford_Mustang_all_2015-2017.pdf · source reference 4074

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
