Connector End View C1073 - Fuel Rail Pressure (Frp) Sensor — OEM Connector End Views · Reference 4075

RE454 (YE-GN)

CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 (SIGRTN)

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number 3U2Z-14S411-HYB

WPT-989 Gauge:

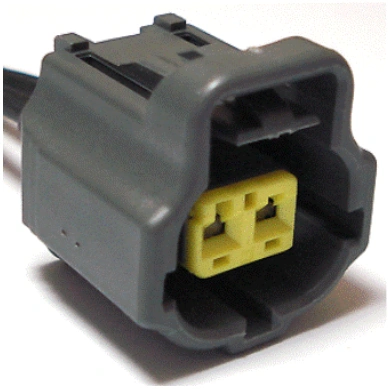

Connector End View C1073 - Fuel Rail Pressure (Frp) Sensor — original illustration 1, reference 4075Original colors & callouts · Select to enlarge

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Sensor - Coolant Temperature

Sensor - Cylinder Head Temperature

Sensor - Transmission Oil Temperature

CONNECTOR VIEWS > CONNECTOR END VIEW C1073 - FUEL RAIL PRESSURE

(FRP) SENSOR

Connector:C1073

Description

FUEL RAIL PRESSURE (FRP) SENSOR

Color

Harness

14B485

Base Part #

part# N/A

Ford_Mustang_all_2015-2017.pdf · source reference 4075
