Connector End View C1074 - Cooling Fan Motor 2 — OEM Connector End Views · Reference 4078

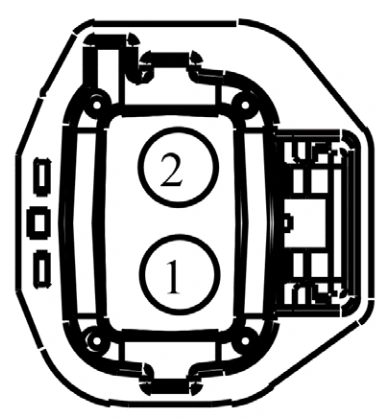

Connector End View C1074 - Cooling Fan Motor 2 — original illustration 1, reference 4078Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CEC07 (BN)	10	RELAY - ENGINE COOLING FAN HIGH SPEED
2	GD122 (BK)	10	GROUND - FENDER FRONT LEFT # 3RD POINT

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-EUAB

WPT-1417

Gauge:

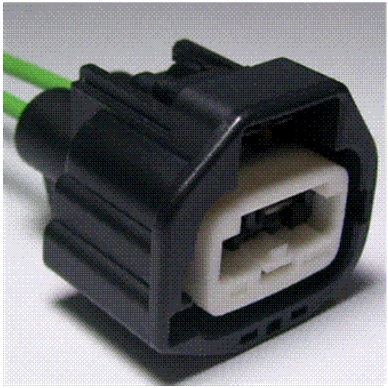

Connector End View C1074 - Cooling Fan Motor 2 — original illustration 2, reference 4078Original colors & callouts · Select to enlarge

14

Pin material:

Silver

Cavities:

2

Vehicle Uses

Motor - Engine Cooling Fan

Pump - Fuel (External)
