Connector End View C1100a - Battery — OEM Connector End Views · Reference 4080

1	CEC05 (VT-GY)	10	RELAY - ENGINE COOLING FAN
2	CEC06 (YE-OG)	10	RELAY - ENGINE COOLING FAN 2ND

Available Pigtail Kits

Service Part Number:

3U2Z-14S411-EUAB

Pigtail Kit Part Number

Gauge:

WPT-1417

14

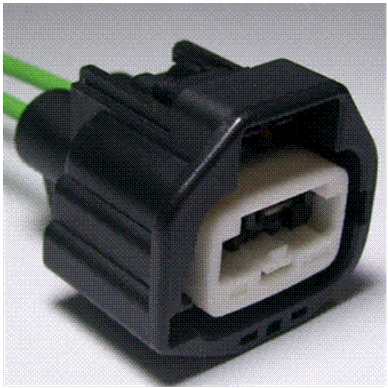

Connector End View C1100a - Battery — original illustration 1, reference 4080Original colors & callouts · Select to enlarge

Pin material:

Silver

Cavities:

2

Vehicle Uses

Motor - Engine Cooling Fan

Pump - Fuel (External)

Resistor - Fan Dropping

Trailer Tow - Vehicle Side

CONNECTOR VIEWS > CONNECTOR END VIEW C1100A - BATTERY

Connector:C1100A

Description

BATTERY

Color

Harness

14B060

Base Part #

part# N/A
