Connector End View C1100b - Battery — OEM Connector End Views · Reference 4081

Service Pigtail

Not Available

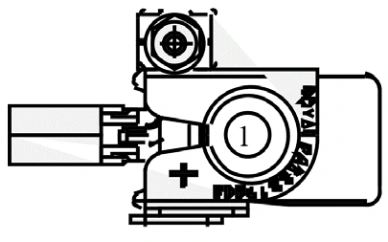

Connector End View C1100b - Battery — original illustration 1, reference 4081Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SDC04 (RD)	2	BATTERY - AUXILIARY # PLUS
1	SDC04 (YE-RD)	4	BATTERY - AUXILIARY # PLUS

CONNECTOR VIEWS > CONNECTOR END VIEW C1100B - BATTERY

Connector:C1100B

Description

BATTERY

Color

Harness

14B060

Base Part #

part# N/A

Service Pigtail

Not Available
