Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | GD108 (BK) | 4 | GROUND - CHASSIS / BATTERY |

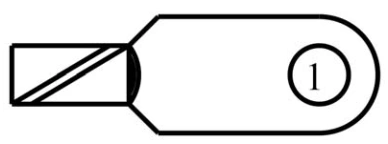

CONNECTOR VIEWS > CONNECTOR END VIEW C1102 - HORN
Connector:C1102
Description
HORN
Color
WH
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
