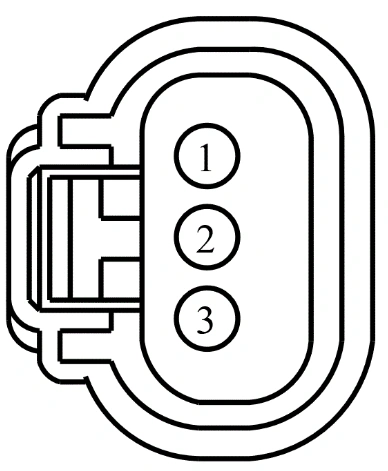

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | LE111 (VT-GN) | 20 | CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) | |
2 | VET26 (BN-GN) | 20 | SENSOR - OUTPUT SHAFT SPEED (OSS) | |
3 | RET24 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-990 | Service Part Number: 8U2Z-14S411-ZB Gauge: 14 Pin material: Tin (greased) |
