Connector End View C1120 - Crankshaft Position (Ckp) Sensor

OEM Connector End Views

Source configuration appliesSource reference 4,088HTML edition

← Chapter contents Manual collection

CONNECTOR VIEWS > CONNECTOR END VIEW C1120 - CRANKSHAFT POSITION

(CKP) SENSOR

Connector:C1120

Description

CRANKSHAFT POSITION (CKP) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

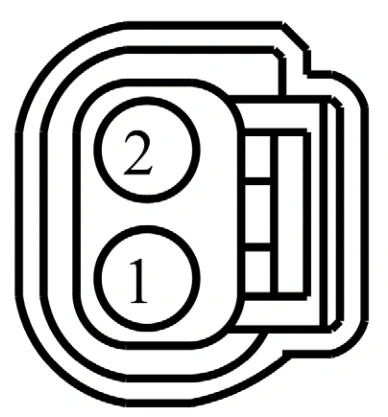

Connector End View C1120 - Crankshaft Position (Ckp) Sensor — original illustration 1, reference 4088Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE135 (GN-BN)	18	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP-)

Ford_Mustang_all_2015-2017.pdf · source reference 4088
