Connector End View C1110 - Air Conditioning (Ac) Compressor Control Solenoid

OEM Connector End Views

Source configuration appliesSource reference 4,087HTML edition

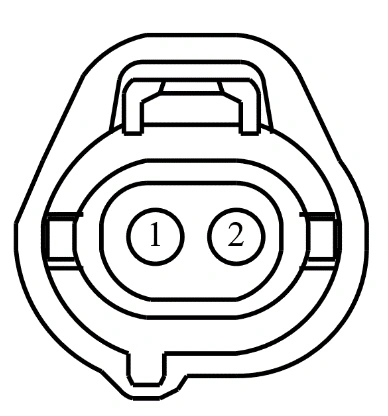

Connector End View C1110 - Air Conditioning (Ac) Compressor Control Solenoid — original illustration 1, reference 4087Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE462 (WH-BN)	20	CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE
2	CBK03 (GY)	20	FUSE - 42 OR CIRCUIT BREAKER (VPWR 3)

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-869 6U2Z-14S411-DA

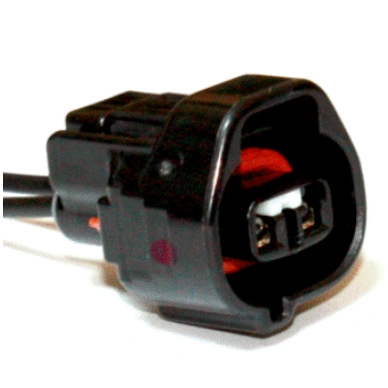

Connector End View C1110 - Air Conditioning (Ac) Compressor Control Solenoid — original illustration 2, reference 4087Original colors & callouts · Select to enlarge

Gauge:

18

Pin material:

Tin

Cavities:

2

Vehicle Uses

Lamp - License
