Connector End View C1126 - Front Side Marker Lamp RH — OEM Connector End Views · Reference 4089

RE135 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION 1 20 (GN-BN) SENSOR (CKP-) VE711 2 18 SENSOR - CRANKSHAFT POSITION (CKP+) (YE-VT) VE711 2 20 SENSOR - CRANKSHAFT POSITION (CKP+) (YE-VT)

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

3U2Z-14S411-SLB

Pigtail Kit Part Number

Gauge:

WPT-986

14

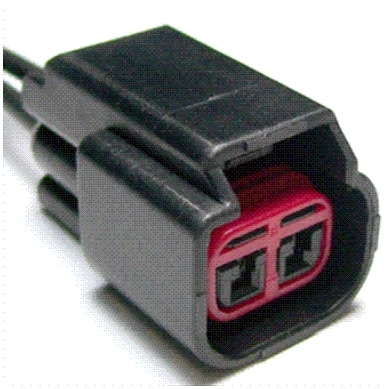

Connector End View C1126 - Front Side Marker Lamp RH — original illustration 1, reference 4089Original colors & callouts · Select to enlarge

Pin material:

Tin

Cavities:

2

Vehicle Uses

Coil - Ignition

Lamp - License

Sensor - Cam Shaft Position

Sensor - Crank Shaft Position

CONNECTOR VIEWS > CONNECTOR END VIEW C1126 - FRONT SIDE MARKER LAMP

RH

Connector:C1126

Description

FRONT SIDE MARKER LAMP RH

Color

Ford_Mustang_all_2015-2017.pdf · source reference 4089

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
