Connector End View C1126 - Front Side Marker Lamp RH

OEM Connector End Views

Source configuration appliesSource reference 4,090HTML edition

← Chapter contents Manual collection

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

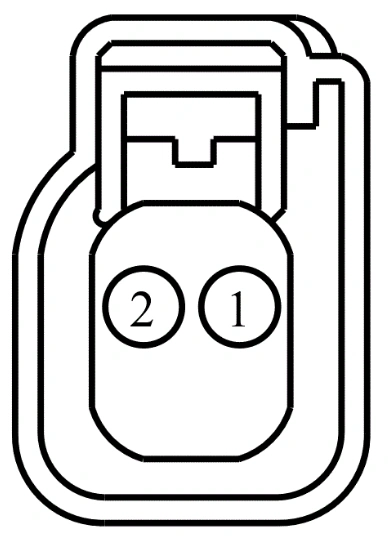

Connector End View C1126 - Front Side Marker Lamp RH — original illustration 1, reference 4090Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD123 (BK-GY)	20	GROUND - FENDER FRONT RIGHT
2	CLS30 (VT-WH)	20	RELAY - PARK LAMP

Available Pigtail Kits
Pigtail Kit Part Number	Service Part Number:
