Connector End View C1074 - Cooling Fan Motor 2

OEM Connector End Views

Source configuration appliesSource reference 4,077HTML edition

← Chapter contents Manual collection

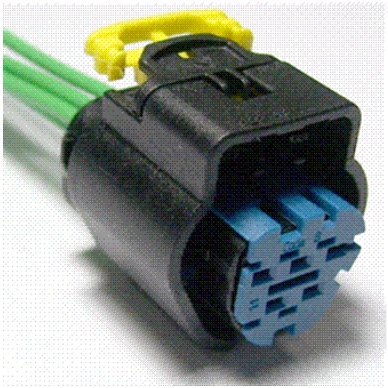

Connector End View C1074 - Cooling Fan Motor 2 — original illustration 1, reference 4077Original colors & callouts · Select to enlarge

18

Pin material:

Silver

Cavities:

5

Vehicle Uses

Sensor - Fuel Rail Pressure

Sensor - Turbo Intake Pressure/Temperature

CONNECTOR VIEWS > CONNECTOR END VIEW C1074 - COOLING FAN MOTOR 2

Connector:C1074

Description

COOLING FAN MOTOR 2

Color

DK GY

Harness

8C290

Base Part #

part# N/A

Service Pigtail

See Below
