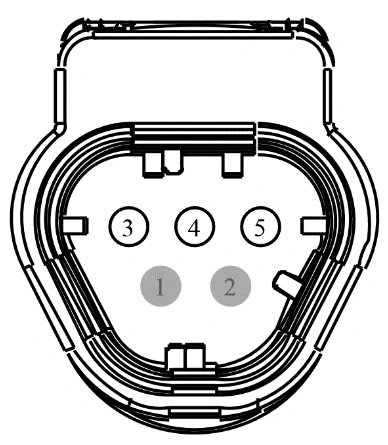

Service Pigtail
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * | * | Not Used | |
2 | * | * | Not Used | |
3 | RE454 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN) | |
4 | LE238 (GY) | 20 | CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE (FRP) | |
5 | LE423 (GN-VT) 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE (VREF) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1418 | Service Part Number: FU2Z-14S411-HA Gauge: |
