Connector End View C1141 - Fuel Injector 1

OEM Connector End Views

Source configuration appliesSource reference 4,096HTML edition

← Chapter contents Manual collection

Color

Harness

14B485

Base Part #

part# N/A

Service Pigtail

See Below

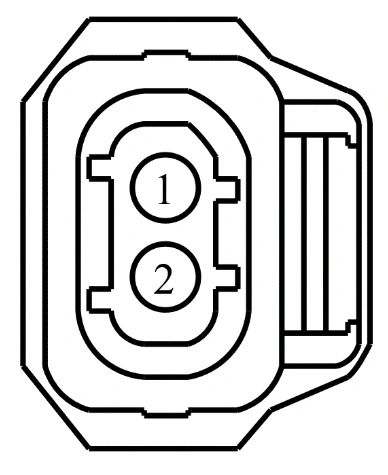

Connector End View C1141 - Fuel Injector 1 — original illustration 1, reference 4096Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE205 (GN-BU)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +
2	RE205 (YE-BU)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) -
