Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VE803 (BU-GN) | 18 | SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) | |
2 | LE458 (BU-WH) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF) | |
3 | VE740 (VT-GY) | 18 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | |
4 | RE405 (GN-WH) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) |
Available Pigtail Kits
Pigtail Kit Part Number Service Part Number:
WPT-1309 CU2Z-14S411-AYA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses
Motor - Active Grill Shutter

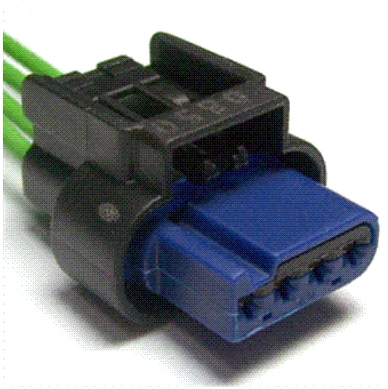

CONNECTOR VIEWS > CONNECTOR END VIEW C1141 - FUEL INJECTOR 1
Connector:C1141
Description
FUEL INJECTOR 1
Ford_Mustang_all_2015-2017.pdf · source reference 4095
Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
