CONNECTOR VIEWS > CONNECTOR END VIEW C1140 - MANIFOLD ABSOLUTE

PRESSURE AND TEMPERATURE (MAPT) SENSOR

Connector:C1140

Description

MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

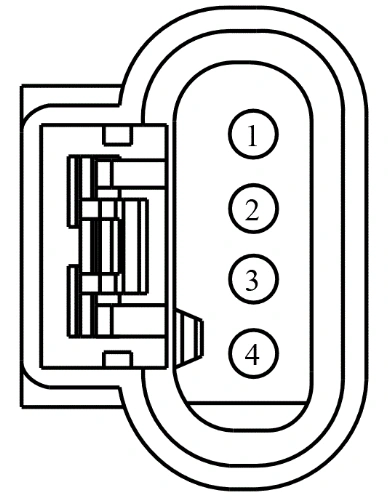

Connector End View C1140 - Manifold Absolute Pressure And Temperature (Mapt) Sensor — original illustration 1, reference 4094Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers
