Connector End View C1785 - Hood Hinge, Driver Side

OEM Connector End Views

Source configuration appliesSource reference 4,257HTML edition

← Chapter contents Manual collection

WPT-1251 CU2Z-14S411-DA

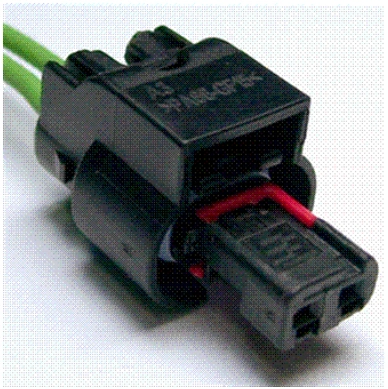

Connector End View C1785 - Hood Hinge, Driver Side — original illustration 1, reference 4257Original colors & callouts · Select to enlarge

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses

Solenoid - Engine Variable Timing

CONNECTOR VIEWS > CONNECTOR END VIEW C1785 - HOOD HINGE, DRIVER SIDE

Connector:C1785

Description

HOOD HINGE, DRIVER SIDE

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below
