Connector End View C1751 - Daytime Running Lamp (Drl), Rf

OEM Connector End Views

Source configuration appliesSource reference 4,254HTML edition

← Chapter contents Manual collection

(DRL), LF

Connector:C1750

Description

DAYTIME RUNNING LAMP (DRL), LF

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

Not Available

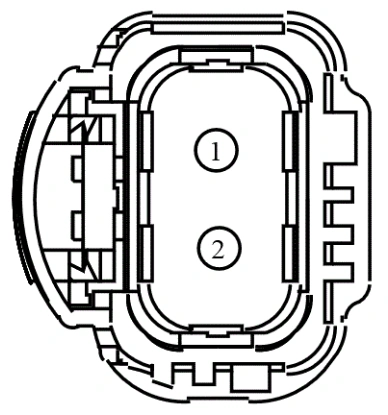

Connector End View C1751 - Daytime Running Lamp (Drl), Rf — original illustration 1, reference 4254Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD123 (BK-GY)	20	GROUND - FENDER FRONT RIGHT
2	CLF61 (GY-BU)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT

CONNECTOR VIEWS > CONNECTOR END VIEW C1751 - DAYTIME RUNNING LAMP
