Connector End View C1757 - Engine Mount Control Solenoid

OEM Connector End Views

Source configuration appliesSource reference 4,255HTML edition

← Chapter contents Manual collection

(DRL), RF

Connector:C1751

Description

DAYTIME RUNNING LAMP (DRL), RF

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

Not Available

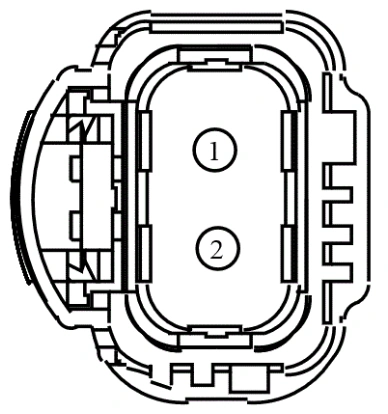

Connector End View C1757 - Engine Mount Control Solenoid — original illustration 1, reference 4255Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD123 (BK-GY)	20	GROUND - FENDER FRONT RIGHT
2	CLF62 (VT-WH)	20	CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT

CONNECTOR VIEWS > CONNECTOR END VIEW C1757 - ENGINE MOUNT CONTROL

Ford_Mustang_all_2015-2017.pdf · source reference 4255

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
