Connector End View C1750 - Daytime Running Lamp (Drl), Lf

OEM Connector End Views

Source configuration appliesSource reference 4,253HTML edition
← Chapter contentsManual collection

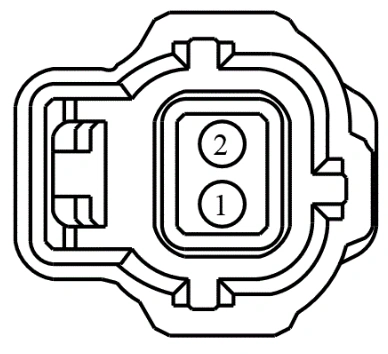

Connector End View C1750 - Daytime Running Lamp (Drl), Lf — original illustration 1, reference 4253Original colors & callouts · Select to enlarge

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VE712 (BU-GY) 18

SENSOR - CYLINDER HEAD TEMPERATURE (CHT)

2

RE405 (GN-WH)

18

CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1120 3U2Z-14S411-ARB

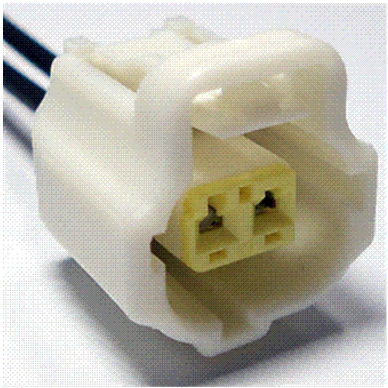

Connector End View C1750 - Daytime Running Lamp (Drl), Lf — original illustration 2, reference 4253Original colors & callouts · Select to enlarge

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Sensor - Cylinder Head Temperature

CONNECTOR VIEWS > CONNECTOR END VIEW C1750 - DAYTIME RUNNING LAMP
