Connector End View C1739 - Variable Camshaft Timing Bank 2 Solenoid 1 (Vct21)

OEM Connector End Views

Source configuration appliesSource reference 4,251HTML edition

← Chapter contents Manual collection

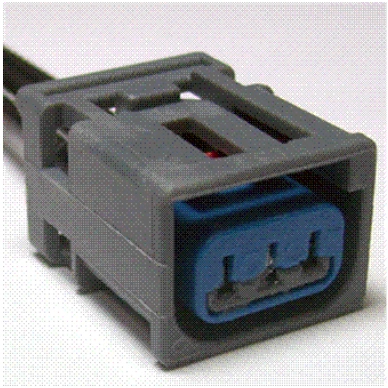

Connector End View C1739 - Variable Camshaft Timing Bank 2 Solenoid 1 (Vct21) — original illustration 1, reference 4251Original colors & callouts · Select to enlarge

3

Vehicle Uses

Sensor - Cam Shaft Position

Sensor - Delta Pressure Feedback EGR

Sensor - Fuel Tank Pressure Transducer

CONNECTOR VIEWS > CONNECTOR END VIEW C1739 - VARIABLE CAMSHAFT

TIMING BANK 2 SOLENOID 1 (VCT21)

Connector:C1739

Description

VARIABLE CAMSHAFT TIMING BANK 2 SOLENOID 1 (VCT21)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

Not Available

Ford_Mustang_all_2015-2017.pdf · source reference 4251
