Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CE442 (YE-GY) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 3 | |
2 | CBK02 (GN) | 18 | FUSE - 40 OR CIRCUIT BREAKER (VPWR 2) |

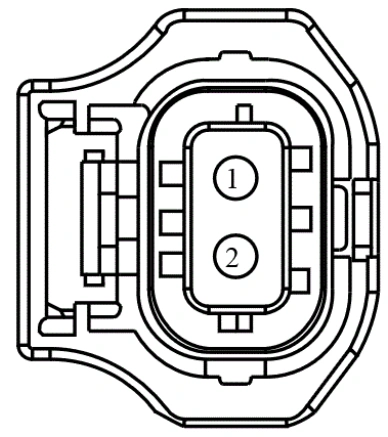

CONNECTOR VIEWS > CONNECTOR END VIEW C1745 - CYLINDER HEAD
TEMPERATURE (CHT) SENSOR
Connector:C1745
Description
CYLINDER HEAD TEMPERATURE (CHT) SENSOR
Color
Harness
14B485
Base Part #
part# N/A
Service Pigtail
See Below
