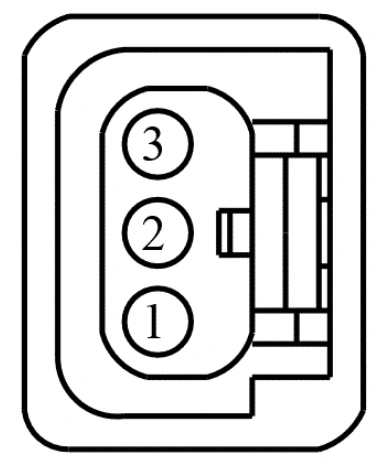

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | LE458 (BU-WH) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF) | |
2 | RE405 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | |
3 | VE707 (GN-VT) | 20 | SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP12) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1205 | Service Part Number: 3U2Z-14S411-KMB Gauge: 16 Pin material: Tin (greased) Cavities: |
