Connector End View C1757 - Engine Mount Control Solenoid

OEM Connector End Views

Source configuration appliesSource reference 4,256HTML edition

← Chapter contents Manual collection

SOLENOID

Connector:C1757

Description

ENGINE MOUNT CONTROL SOLENOID

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

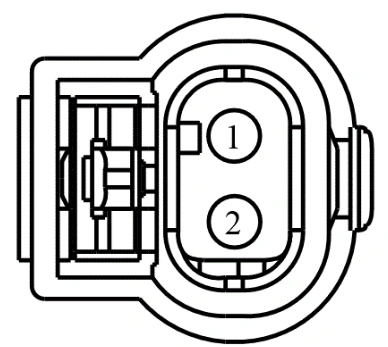

Connector End View C1757 - Engine Mount Control Solenoid — original illustration 1, reference 4256Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK03 (GY)	18	FUSE - 42 OR CIRCUIT BREAKER (VPWR 3)
2	CE106 (BU-OG)	20	CTRL MOD. - POWERTRAIN # ACTIVE MOUNTS (AMC)

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:
