Check for Terminal Part Numbers

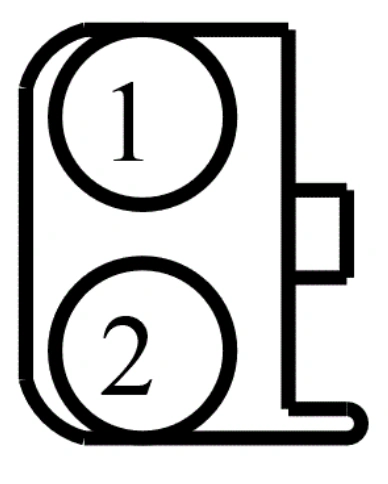

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VH409 (WH) | 22 | SENSOR - DISCHARGE TEMP. # LEFT | |
2 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF RETURN |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-967 | Service Part Number: 3U2Z-14S411-CZB Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Module - Auto Lamps |
