Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * | * | Not Used | |
2 | * | * | Not Used | |
3 | CR139 (VT-WH) | 22 | CTRL MOD. - AIR BAG DRIVER KNEE + | |
4 | RR139 (YE) | 22 | CTRL MOD. - AIR BAG DRIVER KNEE - |

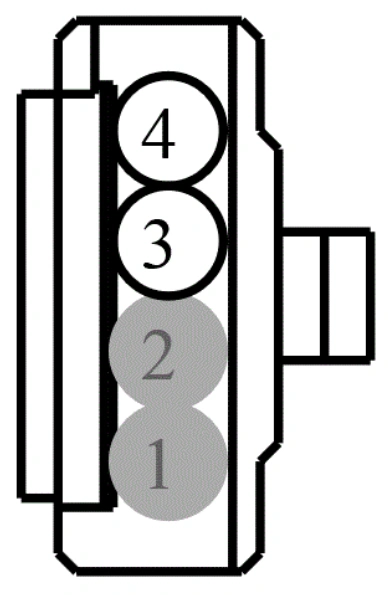

CONNECTOR VIEWS > CONNECTOR END VIEW C2434 - STEERING COLUMN LOCK
MODULE
Connector:C2434
Description
STEERING COLUMN LOCK MODULE
