Connector End View C2434 - Steering Column Lock Module

OEM Connector End Views

Source configuration appliesSource reference 4,345HTML edition
← Chapter contentsManual collection

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

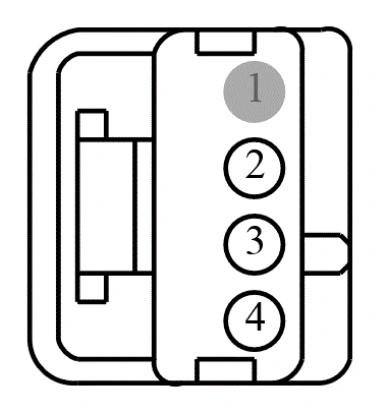

Connector End View C2434 - Steering Column Lock Module — original illustration 1, reference 4345Original colors & callouts · Select to enlarge

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

*

*

Not Used

2

CDC45 (VT-BN)

16

CTRL MOD. - ELECTRICAL STEERING COLUMN LOCK +

3

GD214 (BK-BU)

16

GROUND - INSTRUMENT PANEL STRUCTURE

4

VDN02 (GN-OG)

22

CTRL MOD. - LIN BUS # SPDJB 2

Available Pigtail Kits
