Installation

Accessory Drive - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 4,542HTML edition
← Chapter contentsManual collection
Installation — original illustration 1, reference 4542Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > ACCESSORY DRIVE BELT TENSIONER >

REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the accessory drive belt. Refer to: Accessory Drive Belt .

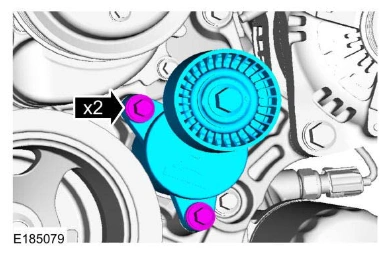

2. Remove the bolts and the accessory drive belt tensioner.

Torque

: 18 lb.ft (25 Nm)

Installation — original illustration 2, reference 4542Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > ACCESSORY DRIVE BELT TENSIONER >

INSTALLATION

1. To install, reverse the removal procedure.

Ford_Mustang_all_2015-2017.pdf · source reference 4542
