Installation

Accessory Drive - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 4,545HTML edition
← Chapter contentsManual collection

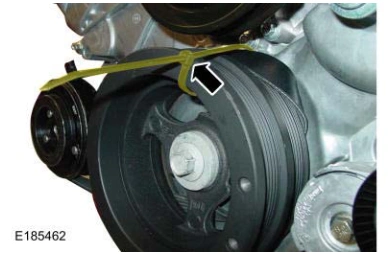

Installation — original illustration 1, reference 4545Original colors & callouts · Select to enlarge

NOTE: The A/C compressor belt must be above the oil pan flange or damage to the A/C compressor belt and engine can occur.

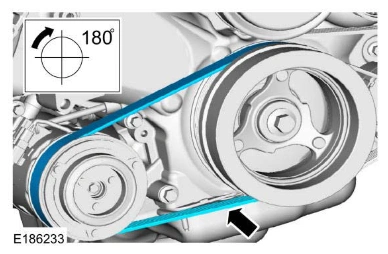

3. With the A/C compressor belt positioned above the oil pan flange, rotate the crankshaft by hand clockwise 180°.

Installation — original illustration 2, reference 4545Original colors & callouts · Select to enlarge

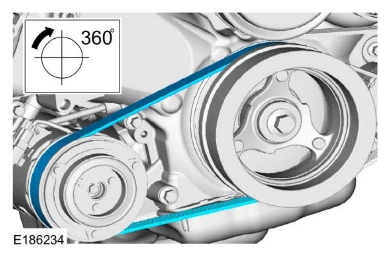

4. Remove the cable tie and rotate the crankshaft clockwise by hand 360° to verify the A/C compressor belt has correctly seated onto the crankshaft and A/C compressor pulleys.

Installation — original illustration 3, reference 4545Original colors & callouts · Select to enlarge

5. After installation, make sure the A/C compressor belt is correctly seated on all pulleys.
