Accessory Drive - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 4,544HTML edition
← Chapter contentsManual collection

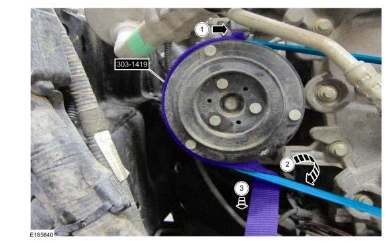

Installation — original illustration 1, reference 4544Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > AIR CONDITIONING (A C) COMPRESSOR BELT >

INSTALLATION

NOTE: Make sure the A/C compressor belt is correctly seated on the A/C compressor pulley.

1. Position the A/C compressor belt in 3 stages.

Stage 1: Slide the A/C compressor belt between the crankshaft pulley and the accessory drive belt tensioner.

Stage 2: Position the A/C compressor belt behind the crankshaft pulley with the accessory drive belt ribs facing towards the front of the vehicle.

Stage 3: Position the A/C compressor belt onto the A/C compressor pulley with the lower portion of the accessory drive belt ribs facing towards the front of the vehicle and above the oil pan as shown in illustration.

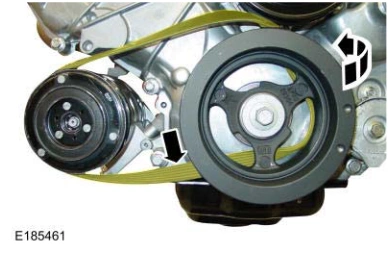

Installation — original illustration 2, reference 4544Original colors & callouts · Select to enlarge

NOTE: After installation, make sure the A/C compressor belt is correctly seated on the crankshaft and A/C compressor pulleys.

2. Position the A/C compressor belt onto the top of the crankshaft pulley and feed a cable tie with a minimum width of 3 mm (0.12 in) through the crankshaft pulley spokes, up and over the A/C compressor belt and tighten the cable tie. Use the General Equipment: Cable Ties
