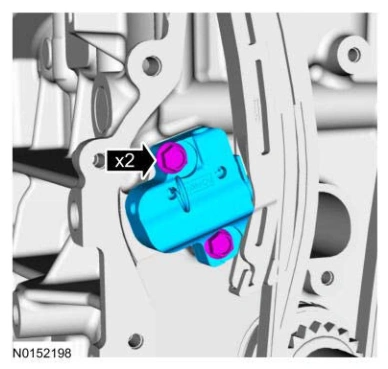

Remove the bolts and the timing chain tensioner.

Engine — original illustration 1, reference 4835Original colors & callouts · Select to enlarge

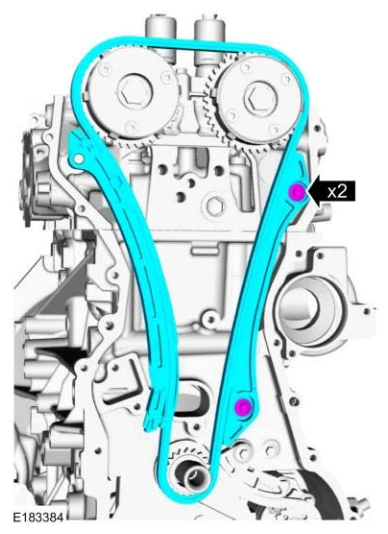

90. Remove the bolts and the timing chain guide, timing chain and tensioner arm.

Engine — original illustration 2, reference 4835Original colors & callouts · Select to enlarge

91. Remove the bolts and the VCT units.
